FEATURES

 Telescopic, compact, light-weight.

 Light weight easy to sue and handy.

 High-voltage detectable. The equipment, whether in stretched state is available for voltage detection in high-tension.

 Easy to recognize indication. Intermittent lighting in red of a high intensity light emitting diode and intermittent audible sound of an electronic buzzer are easy recognizable at a full daylight, noisy location.

 Water proof. The detecting head, being tightly enclosed, is free from any trouble due to dust, water.

 IEC/EN 61243-1, 60068-2-6, 60068-2-32, 60068-2-14

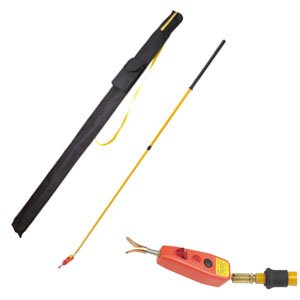

 The detector detects high and extra high voltage in AC lines. An elongate insulation rod permits checking of high tension circuits at a safe distance for voltage. Also it is telescopic compact, light-weight, easy to sue and handy.

SPECIFICATIONS

Measuring Voltage Range

6kV ~ 81.5kV

Operation Start Voltage (To ground)

2.7kV

Display

Light : flashing red light, Sound : intermittent sound 50 dB apart 3 m

Overall Length

Retracted : 1370 +/- 50mm, Extracted : 2450 +/- 50mm

Frequency

50 / 60Hz

Operating Temperature

-10 degree C ~ +50 degree C

Battery

2 button cells LR44 (1.5V)

Weight

590g (battery included)

Accessories

Instruction manual, carrying case

COMMON RATINGS

Withstand Voltage (On insulating rod)

100kV / 300mm : 5 minutes

Insulation Resistance

2000M Ohm min. by 1kV/DC megger at the same testing location as withstand voltage

Leakage Current

100uA or less than 100uA at withstand voltage test

Construction

Water proof (detecting head impervious to water)
