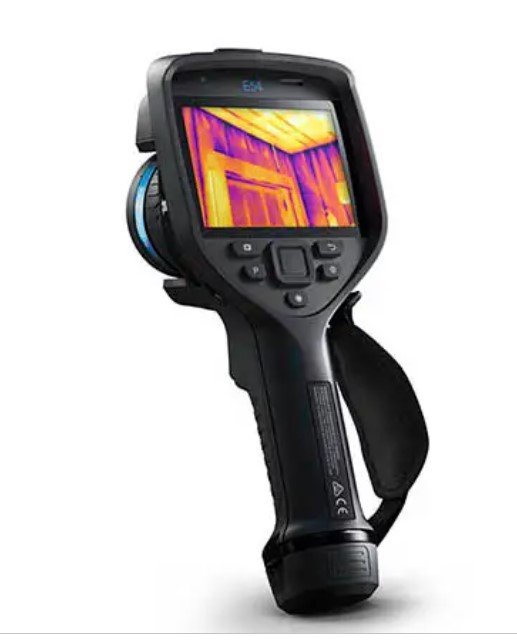

The Teledyne FLIR E5424 Advanced Thermal Imaging Camera with 24° Lens offers the resolution and sensitivity needed for basic condition monitoring, electrical or mechanical inspection, and building inspection. To help the user stay organized when surveying large or multiple locations, the FLIR Inspection Route runs pre-planned routes.

• Teledyne FLIR 1-Touch Level/Span to instantly improve image contrast and highlight potential electrical or mechanical issues
• Measures up to 650°C (1202°F), offers 3 spotmeters, and displays max/min temperature within area live, on-screen
• Onboard integration with Teledyne FLIR routing software, built-in mic for voice annotation, and report generation features all help streamline work
• Display: 4 in., 640 x 480 pixel touchscreen LCD with auto-rotation
• Teledyne FLIR Inspection Route: Enabled in camera
• Laser pointer: Yes
• Programmable buttons: 1
• Text: Predefined list or touchscreen keyboard
• Voice: 60 sec. recording added to still images or video via built-in mic (has speaker) or via Bluetooth
• Communication interfaces: USB 2.0, Bluetooth, Wi-Fi, DisplayPort
• METERLiNK: Yes
• Storage media: Removable SD card
• Video out: DisplayPort over USB Type-C
• Operating temperature range: -15 to 50°C (5 to 122°F)
• Safety: EN/UL/CSA/PSE 60950-1
• Shock and vibration and encapsulation: 25g (IEC 60068-2-27), 2g (IEC 60068-2-6), IP54 (IEC 60529)
• Storage temperature range: -40 to 70°C (-40 to 158°F)
• Color palettes: Iron, Rainbow, Rainbow HC, White Hot, Black Hot, Arctic, Lava
• Detector type and pitch: Uncooled microbolometer, 17 µm
• Digital camera: 5 MP, with built-in LED photo/video lamp
• Digital zoom: 1-4x continuous
• f-number: 1.3
• Focus: Manual
• Global Positioning System [GPS]: Automatic image tagging
• Image frequency: 30 Hz
• Image sketch: From touchscreen, on infrared image only
• IR resolution: 320 x 240 pixels
• Minimum focus distance: 0.15 m
• Non-Radiometric IR or visual video: H.264 to memory card
• Non-radiometric IR video streaming: H.264 or MPEG-4 over Wi-Fi MJPEG over UVC or Wi-Fi
• Picture-in-Picture: Centered infrared area on visual image
• Radiometric IR video recording: Real-time radiometric recording (.csq)
• Radiometric IR video streaming: Yes, over UVC
• Spectral range: 7.5-14 µm
• Thermal sensitivity/NETD: <40 mK at 30°C (86°F)
• Accuracy: ±2°C (±3.6°F) or ±2% of reading
• Measurement Presets: No measurements, Center Spot, Hot Spot, Cold Spot, 3 Spots, Hot Spot-Spot
• Object temperature range: -20 to 120°C (-4 to 248°F); 0 to 650°C (32 to 1202°F)
• Spot meter: 3 ea. in live mode
• Battery operating time: > 2.5 hours at 25°C (68°F) and typical use
• Battery type: Rechargeable Li-ion battery
• Image file format: Standard JPEG with measurement data included; infrared-only mode
• Image storage mode: Infrared, Visual, MSX, Picture-in-Picture, Gallery
