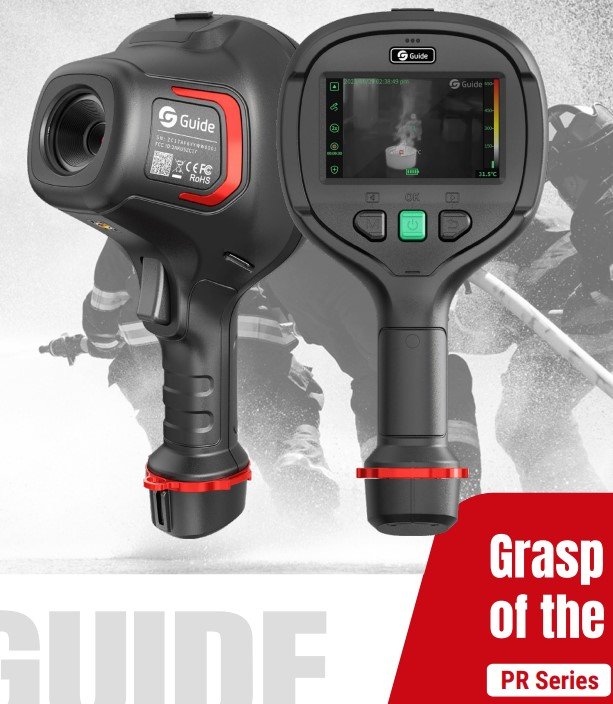

Thermal Camera for Fire Service
PR II series dual-purpose thermal imaging camera for rescue and detection empowers a new perspective for firefighters. The product is certified as Intrinsic Safety Explosion-Proof. It combines high resolution, a large display screen, multiple scene modes, temperature analysis functions, and a strong protection rating, which can break through the limitations of harsh environments such as high temperatures, high humidity, and thick smoke in fire scenes to help firefighters see the surrounding environment quickly and clearly, locate the fire and search for trapped individuals more accurately, providing users with more efficient and safe fire visualization solutions.
384x288@12μmInfrared Resolution
-40°C~2000°C Ultra-Wide Temp.Range
60HzIR Frame Rate
0.5m~∞Detection Range
384×288@12μmIR Resolution
-20°C to 2000°C Measurement Range
128 GBLocal Storage
IP67Encapsulation
384x288@12μmInfrared Resolution
-40°C~2000°C Ultra-Wide Temp.Range
60HzIR Frame Rate
0.5m~∞Detection Range
Anti-Glare Display Delivers Clear Imaging
PR II Series features a focus-free design for quick, sharp thermal imaging without manual adjustments. Its 60Hz high frame rate ensures smooth, stable imaging essential for real-time fire scene analysis. The 4.3-inch anti-glare LCD screen allows users to identify targets even in harsh glare or smoke-filled environments, enhancing accuracy.
-40°C~2000°C Temperature Range
Accuracy: ±2°C or ±2%, whichever is greater
Measurement Range: Support auto-switching, -40°C~150°C, 0°C~650°C, 500°C~2000°C (Aperture is required)
| Imaging and optics | ||||
|---|---|---|---|---|
| Detector type | VOx, 7.5 to 14μm | |||
| Infrared resolution | 384×288@12μm | |||
| NETD | 45mK | |||
| Frame rate | 60Hz/9Hz | |||
| Focal length | 9mm | |||
| Field of view | 50°×37° | |||
| IFOV | 2.3mrad | |||
| Min. object distance | 0.5m | |||
| D:S | 435:1 | |||
| Focusing mode | Focus-free | |||
| Digital zoom | 2x/4x/8x | |||
| Measurement and analysis | ||||
|---|---|---|---|---|
| Measurement range | Support auto-switching: -40°C to 150°C, 0°C to 650°C, Optional 500°C to 2000°C (Aperture is required) | |||
| Measurement accuracy | ±2°C or ±2%, whichever is greater | |||
| Analyzed target | Three spots: Center, Maximum temperature, Minimum temperature; Three Fixed Areas: Small, Medium, Large (Alternative) | |||
| Alarm | Full screen temperature threshold alarm (Vibration, Screen flicker, Buzzer) | |||
| Others | OTA update | |||
